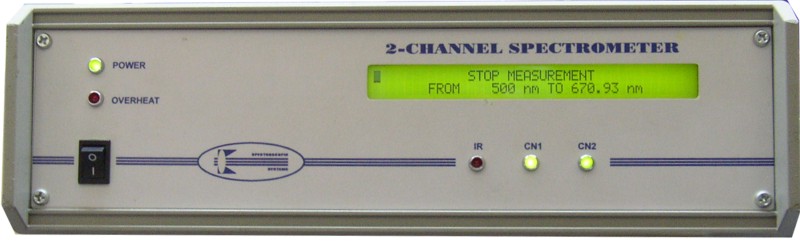

Scanning Spectrometer Automation Module

Sacnning spectrometer Producer: JSC Spectroscopic Systems



Technical characteristics

  • Two counting channels with 100 Mhz bandwidth (PMT measurement)
  • Two ADC channels with 16 bit resolution (photo-diode measurement)
  • Timed start or external strobe pulse is possible
  • High-voltage module with voltage adjustable up to 2 kV.
  • Two step-motor monochromators support with motor speed and acceleration adjustment (e.g. parameters can be tuned to almost every step motor).
  • Laser-line shutter protection.
  • Digital indication of operation modes and measurements results on LCD-display with backlight.
  • UniChrom n-VisiON datasystem control.

Installation manual: Scanner and UniChrom (RUS)

Highlights

  • Small module for replacement old controller of spectrometers like Jobin-Yvon, Dilor etc
  • Possible using as chemiluminometer (2-channel PMT)
