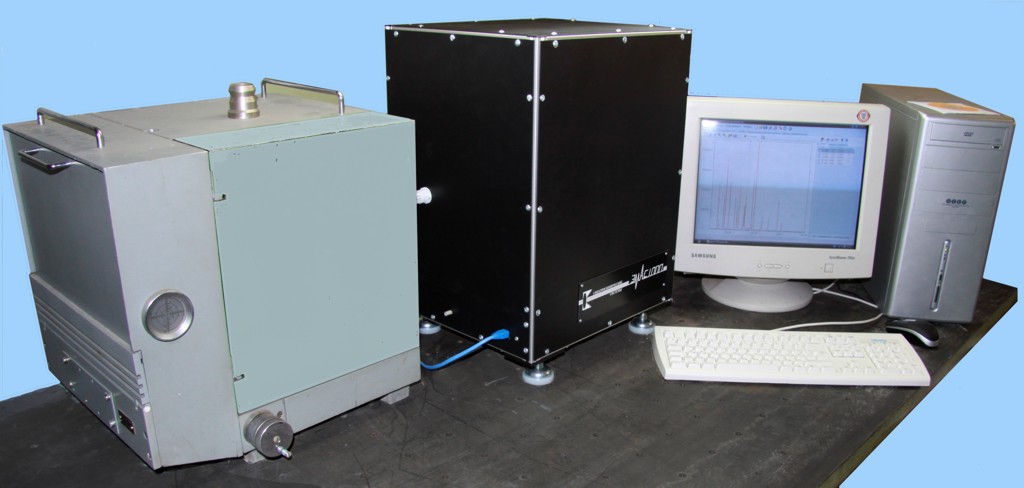

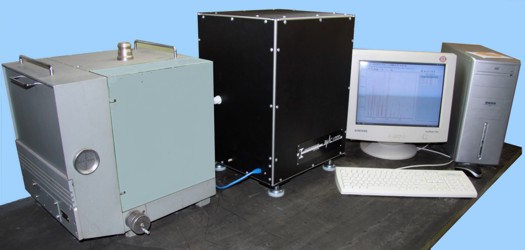

Atomic-emission spectrometer EMAS-200D (EMAS-1000) and UniChrom n-Vision

Producer: JSC "Spectroscopic Systems"

Equipped with the UniChrom n-VisiON software

System incorporates multi-monochromator design.

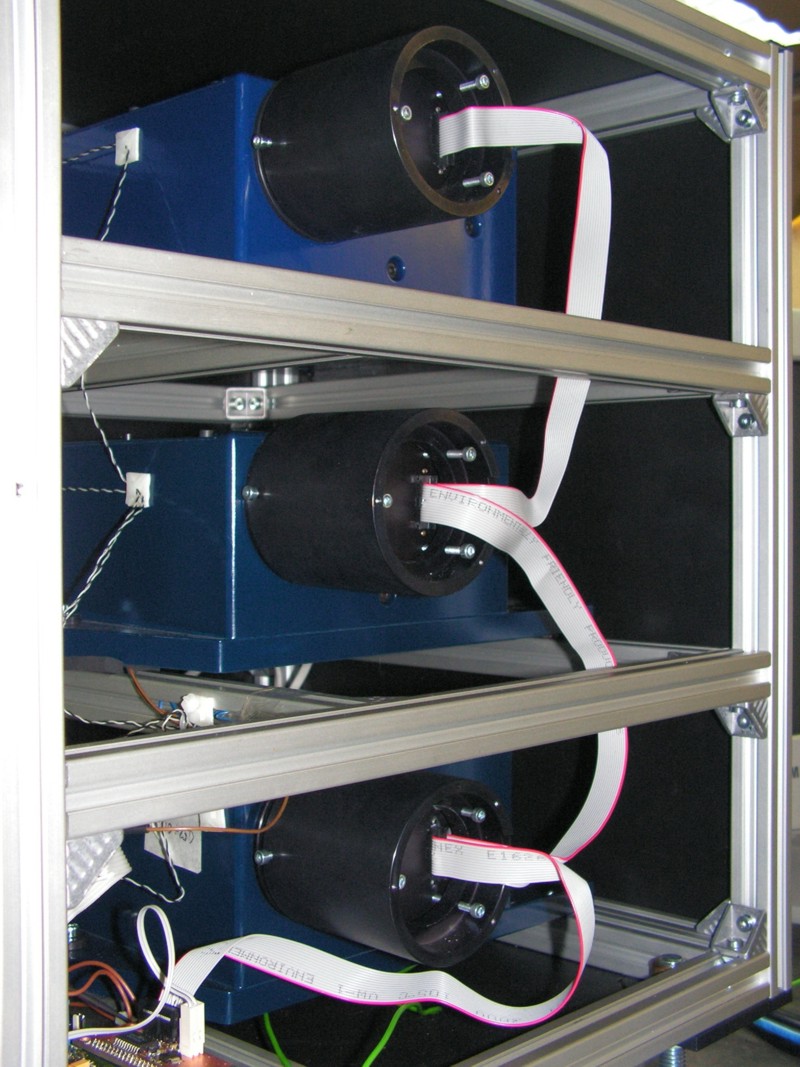

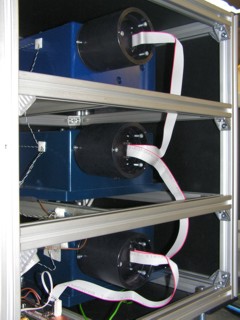

I.e. for specified analytical task the crate (picture at the left) is filled with up-to 5 monochromators fixed at analytical wavelength ranges. This makes system less affected by environmental conditions, since fixed monochromators are very stable.

Every monochromator is equipped by 3645-element CCD sensor, so entire system represent a virtual CCD sensor from 3645 to 18225-element linear detector.

Every region monochromator has its own fiber-optic light entrance. All the fibers are bundled inside the spark-chamber and adjusted to look at electrodes.

System is controlled by ARM9-family (ns9750) embedded computer running Linux (2.6 kernel). External control made through TCP/IP 100-Base T ethernet connection. System provides up to 10 spectra per second, depending on exposition time. Ethernet connection (transformer-decoupled) is less sensible to EM noise impact (generally arc and spark generators produce EMF).

Copper and copper alloys:

• copper,
• brass type LS,
• brass type LAZhMzSK,
• bronze type OSZ,
• bronze type BrAZhMz,
• bronze type BrOF,
• beryllium bronze.

Aluminium and aluminium alloys:

• aluminium
• aluminium alloy of type AKMMgN
• aluminium alloy of type AK
• aluminium alloy of type AK5M2
• aluminium alloy of type D16
• aluminium alloy of type AMG

Zinc and zinc alloys:

• zinc,
• zinc alloy of type ZAM.

Pure Nickel

Lead and lead-antimony alloys.

Steels:

• carbon steel type UG,
• steel type ChGSN
  • steel type ChGSM
  • instrumental steels
  • high speed steels
• stainless steel type Ch18N10T.

Cast iron of all classes.

Precious metals:

• gold
• platinum
• palladium
• silver

Aluminium alloys

Copper
alloys

Zinc
alloys

Carbon- and
middle-alloyed steel

High-alloyed
steel

Cast
Iron

Impurity in pure materials

Element

Conc, %

Conc, %

Conc, %

Conc, %

Conc, %

Conc, %

Conc, %

Ag

–

–

–

–

–

–

0.005- 0.025

Al

base

0.01 - 10.5

4.5 - 12.5

–

0.03 - 0.2

–

0.005 - 0.05

As

–

0.01 - 0.1

–

–

–

–

0.0005 - 0.05

Be

–

1.5 - 3.5

–

–

–

–

0.001 - 0.02

Bi

–

0.001 - 0.01

–

–

–

–

0.001 - 0.05

Cd

–

–

0.008 - 0.07

–

–

–

0.005 - 0.045

Co

–

–

–

–

–

–

0.02 - 0.05

Cr

0.01 - 0.1

–

–

0.1 - 1.5

3.0 - 20.0

0.5 - 1.3

–

Cu

0.1 - 5.5

base

0.5 - 6.0

0.05 - 0.5

0.07 - 0.4

–

0.01 - 0.2

Fe

0.1 - 1.5

0.01 - 5.5

–

base

base

base

0.005 - 0.75

Mg

0.01 - 2.2

–

0.008 - 0.07

–

–

–

0.015 - 0.05

Mn

0.05 - 1.5

0.01 - 9.0

–

0.1 - 1.5

0.1 - 2.3

0.3 - 1.0

0.0001 - 0.2

Mo

–

–

–

–

0.1 - 4.0

0.1 - 0.6

Ni

0.05 - 2.0

0.01 - 6.5

–

0.1 - 2.2

0.1 - 25

0.2 - 1.3

0.004 - 0.3

P

–

0.01 - 1.5

–

–

–

–

–

Pb

0.01 - 0.1

0.001 - 15.0

0.01 - 0.1

–

–

–

0.005 - 0.1

Sb

–

0.001 - 0.5

–

–

–

–

0.001 - 0.01

Si

0.05 - 15.0

0.005 - 3.0

0.02 - 0.3

0.1 - 1.5

0.4 - 3.0

1.5 - 3.0

0.0007 - 0.7

Sn

0.01 - 0.04

0.01 - 11.5

0.005 - 0.05

–

–

–

0.001 - 0.1

Ti

0.01 - 0.5

–

–

–

0.07 - 2.0

–

0.02 - 0.2

V

–

–

–

–

0.1 - 1.2

–

–

W

–

–

–

–

0.1 - 5.0

–

–

Zn

0.01 - 1.5

0.05 - 14.0

base

–

–

–

0.003 - 0.15

Zr

0.01 - 0.3

–

–

–

–

–

–
