Example of deploying ADC LabNet network in industrial environment

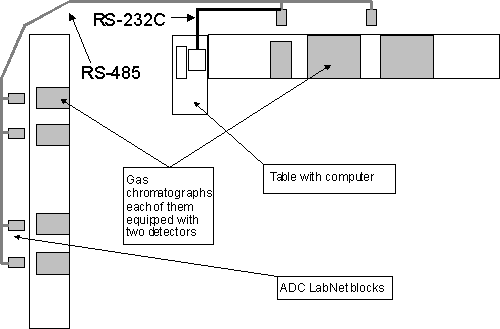

Here is sample diagram shows placement of ADC LabNet network in control laboratory of "Nevinnomyssk Azot". It is shown 6 ADC blocks, each of block can acquire two anlogue signals so total number of channels is 12. Single computer acquires and processes all the data simultaneously from 12 channels. Cable length is about 30 meters.
